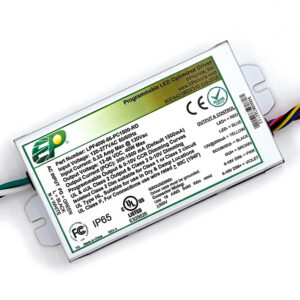

LP40W Series 40 Watt Programmable LED Driver with 12VDC Auxiliary
Technical Specifications
- Output Watts: 40W Max.
- Output Voltage Range: 12 – 56VDC
- Output Current Range: Programmable, 300mA – 1500mA
- Output CCR Dimming: Programmable 0-10V Linear or LOG Dimming 1% – 100%
- Auxiliary Output: 12VDC @ 0 – 200mA
- Programming: Wired (-RD)
- 2-Stage Flicker Free Output
- Input Universal AC: 120 – 277VAC, 50/60Hz
- Disable Dimming: Programmable YES/NO
- Dim to Zero: Programmable YES/NO
- Soft Start: Programmable YES/NO
- NTC input: Programmable
- Constant Lumen Table: Programmable
- End of Life Indicator: Programmable 1k-254k Hours
- Safety: UL8750, CSA 22.2 Listed Class P
- EMC: FCC, 47CFR Part 15 Class B @120Vac, Class A @ 277Vac
- IP20, NEMA1 for Dry and Damp Locations
- Available with Bottom Studs for mounting (-RDS)
- Mounting/Connections: Case mounting holes with Push Pin Wire Quick Connects
Support File Downloads:
(Get Free Adobe Acrobat Reader)
LP40W -RDW Finished Assembly 3D PDF File (Compressed zip file)
LP40W -RDW Finished Assembly 3D STEP File (Compressed zip file)
LP40W -RDSW Finished Assembly 3D PDF File (Compressed zip file)
LP40W -RDSW Finished Assembly 3D STEP File (Compressed zip file)
Technical Specifications
- Output Watts: 40W Max.
- Output Voltage Range: 12 – 56VDC
- Output Current Range: Programmable, 300mA – 1500mA
- Output CCR Dimming: Programmable 0-10V Linear or LOG Dimming 1% – 100%
- Auxiliary Output: 12VDC @ 0 – 200mA
- Programming: Wired (-RD)
- 2-Stage Flicker Free Output
- Input Universal AC: 120 – 277VAC, 50/60Hz
- Disable Dimming: Programmable YES/NO
- Dim to Zero: Programmable YES/NO
- Soft Start: Programmable YES/NO
- NTC input: Programmable
- Constant Lumen Table: Programmable
- End of Life Indicator: Programmable 1k-254k Hours
- Safety: UL8750, CSA 22.2 Listed Class P
- EMC: FCC, 47CFR Part 15 Class B @120Vac, Class A @ 277Vac
- IP20, NEMA1 for Dry and Damp Locations
- Available with Bottom Studs for mounting (-RDS)
- Mounting/Connections: Case mounting holes with Push Pin Wire Quick Connects
Support File Downloads: (Get Free Adobe Acrobat Reader)
LP40W -RDW Finished Assembly 3D PDF File (Compressed zip file)
LP40W -RDW Finished Assembly 3D STEP File (Compressed zip file)
LP40W -RDSW Finished Assembly 3D PDF File (Compressed zip file)
LP40W -RDSW Finished Assembly 3D STEP File (Compressed zip file)
| Part Number | US CLass 2 | CN Class 2 | UL Types | Output Voltage Range | Programmable Output Constant Current Range | Current Accuracy | Output Power Maximum | Typical Efficiency | Check Availability |
|---|---|---|---|---|---|---|---|---|---|
| LP40W-56-PC1500-RD | YES | YES | UL Listed Class P | 12 - 56 VDC | 300 mA to 1500 mA | ± 5% | 40W | 84% | |
| LP40W-56-PC1500-RDW | YES | YES | UL Listed Class P | 12 - 56 VDC | 300 mA to 1500 mA | ± 5% | 40W | 84% | Check |
| LP40W-56-PC1500-RDS | YES | YES | UL Listed Class P | 12 - 56 VDC | 300 mA to 1500 mA | ± 5% | 40W | 84% | |
| LP40W-56-PC1500-RDSW | YES | YES | UL Listed Class P | 12 - 56 VDC | 300 mA to 1500 mA | ± 5% | 40W | 84% |
